EoC – IP & Wi-Fi using existing TV cables

Transform your network with efficient Ethernet over coaxial solutions for seamless expansion.

EOC Technology Insights

We believe that reliable, high-speed connectivity should be seamless, eco-friendly and cost-effective. That’s why our EoC (Ethernet over Coax) solution leverages cutting-edge G.hn Wave 2 technology to deliver IPTV services and Gigabit connectivity – all without the extensive cost and disruption of installing new CAT or Fibre cables.

Read more

Advanced Networking

Innovative solutions for high-speed data transmission.

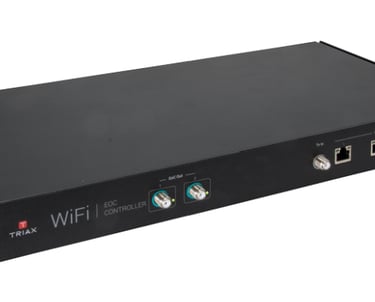

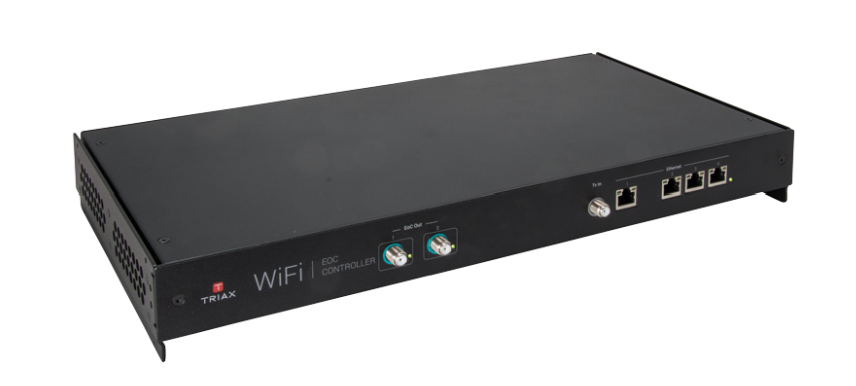

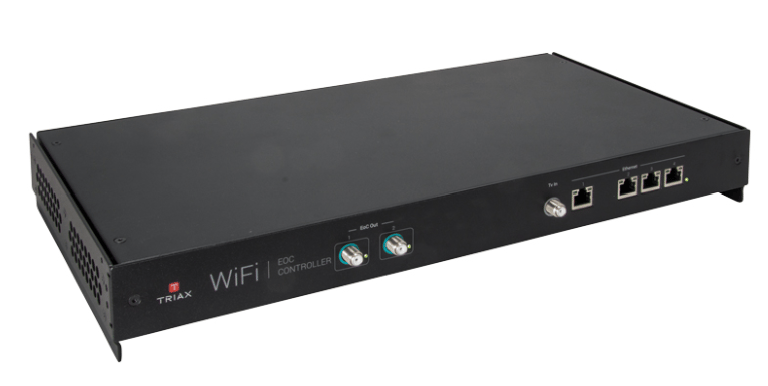

Triax 383104 Ethernet Over Coax (EoC) 32/2 B, Wi-Fi & TV End Point Controller Unit

Triax 383104 EoC/32C-WiFi Ethernet Over Coax (EoC) 32/2B End Point Controller Unit integrates Wi-Fi & LAN delivery using an existing coaxial TV network.

The EoC controller is used as the main unit to control up to 32 endpoints either Wi-Fi or Non-Wi-Fi in an EoC system. The controller acts as both an L2 switch for ethernet and as a media converter from ethernet to coax and back to ethernet, allowing both TV and data signals to use the same coax cable

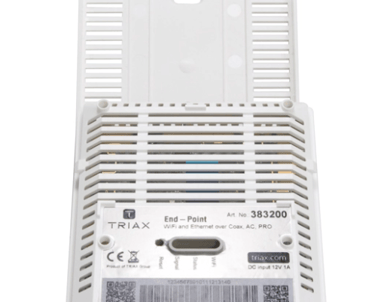

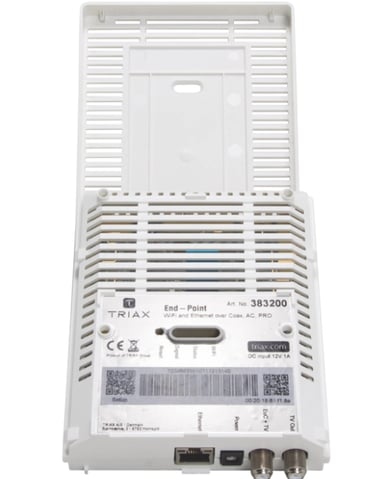

Triax 383200 Ethernet Over Coax (EoC) 2.4 & 5.8Ghz Wi-Fi & LAN Coaxial End Point

Triax 383200 EoC/WEPC Ethernet Over Coax (EoC) coaxial end point with Wi-Fi (2.4 & 5.8GHz) & LAN enabling Wi-Fi coverage via existing coax cables. The endpoint is the last element in a system with an EoC controller, splitting your TV and data signals into Wi-Fi/ethernet for data and coax for TV.
Main features

  • G.hn for data on 1…200 MHz

  • TV on 260…862 MHz

  • Bandwidth up to 1600 MBit/s (shared with other Endpoints on same COAX out)

  • Wi-Fi 802.11ac wave 2

  • 1x ethernet port

  • Supports VLAN tagging

  • Requires 12VDC 1A Power Supply 2.1mm Plug

EOC transformed our network, making expansion simple and efficient without new wiring.

Tech Manager

A technician installing Ethernet over coaxial cables in a modern office environment.
A technician installing Ethernet over coaxial cables in a modern office environment.

Our data speed improved significantly, thanks to the coaxial infrastructure we already had.

Network Engineer

A close-up of coaxial cables connected to networking equipment in a server room.
A close-up of coaxial cables connected to networking equipment in a server room.
★★★★★
★★★★★

Ethernet Over Coax

Transform your network with Ethernet over Coaxial technology for seamless data transmission.

Efficient Network Solutions
