Efficiently distribute satellite channels in communal environments with our smart technology.

TRIAX SCT Silver Series 8 Way TAPS 5~2400MHz F-Type

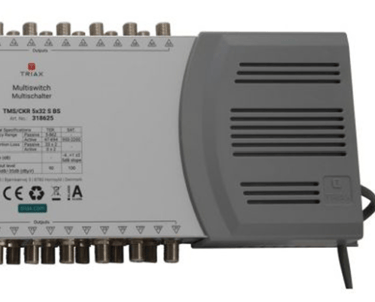

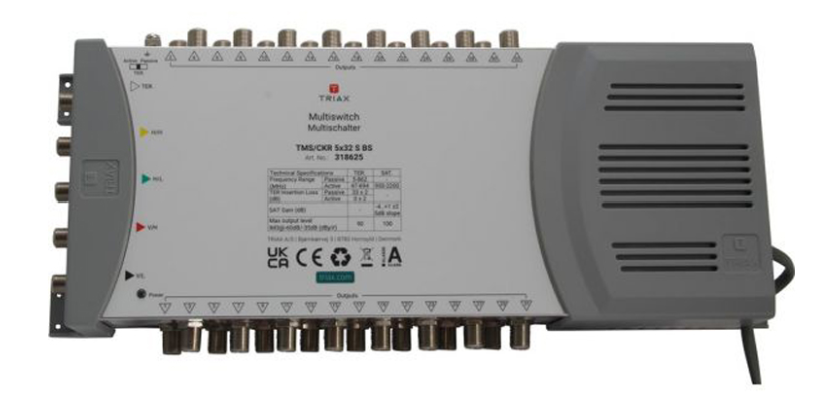

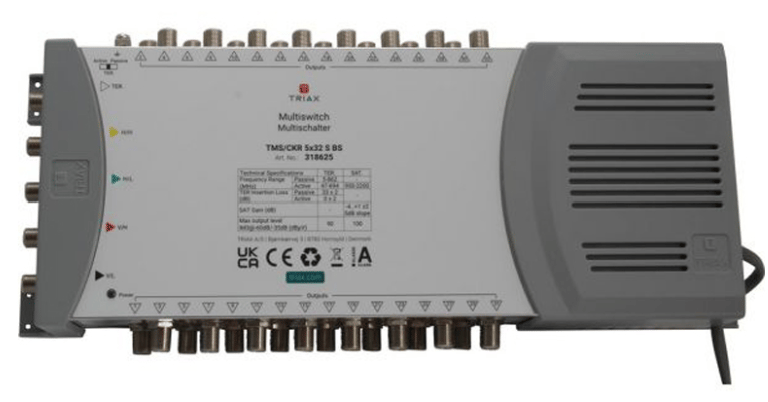

TRIAX TMS Series Standalone 5-Wire Active Mains Powered Multi-switches – 8, 16, 24 & 32 Outputs

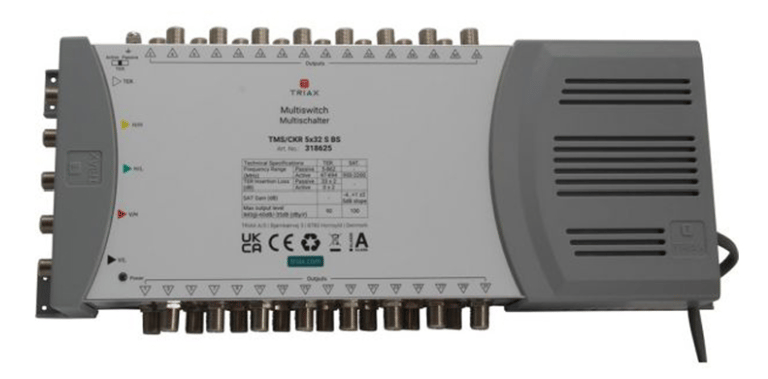

Triax 318602, 318604, 318605 & 318606TMS / CKR Standalone 5S Series 5 Wire – 8, 16, 24 & 32 Outlet Multi-Switch, Mains Powered, Active/Passive TERR

Standalone multi-switch range for 1 Satellite position with 5 inputs and 8 to 32 outputs, suitable for distributing satellite and terrestrial signals in small and medium sized systems.
The TMS 5 S series offers excellent performance and flexibility, with a compact design for installations even in confined spaces.

• TMS0508 318602 5-Wire IN / 8 Outlets

• TMS0516 318604 5-Wire IN / 16 Outlets

• TMS0524 318605 5-Wire IN / 24 Outlets

• TMS0532 318606 5-Wire IN / 32 Outlets

Triax TMS series supersedes the Triax TMP series Multi Switches

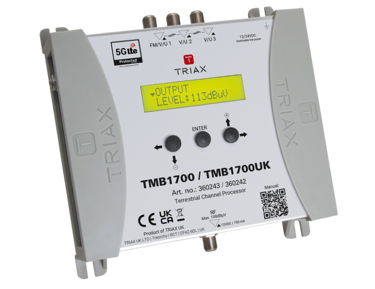

The TRIAX TMB 1700 is an easy to use programmable filter amplifier and convertor for terrestrial signals.
The module optimises terrestrial FM/VHF/UHF signals from multiple inputs.

• Smart & Automatic CHANNEL SCAN

• Can process and convert more than 50 channels (consisting out of 32 filters, each up to 6 MUXes wide)

• Can process S-Band output channels

• 5G LTE Protection (694MHz)

• Sharpest filters on the market (50 dB on adjacent channels)

• Real-time AGC on all individual multiplexes

• Complete flexibility in assigning filters from any input. Each channel can be frequency shifted to any other channel in the VHF or UHF band (Flex Matrix)

Triax 360242 TMB 1700 Programmable Channel Filtering, Band Shifting FTA Mini Processing Headend

Triax SCT Silver Series 2.4GHz 8 Way TAP: Available TAP Value 16, 20dB 5-2400MHz, DC/AC Pass

2-Way TAp/Coupler

• T-SCT816 16 dB 3.9 dB

• T-SCT820 20 dB 3.9 dB

Common Features

• Special performance for use in SAT-IF and MATV distribution networks

• Frequency range 5 MHz up to 2.4 GHz

• DC/AC pass trough max. 25 V/0,5 A over all IN-OUT paths, outputs of splitters DC decoubled by diodes

• High shielding of 110 dB

• Return loss Grade 3

• F- female connectors

• High-quality die cast housing tin (SN) coated

• Optional plastic brackets for passing the cable under the product
